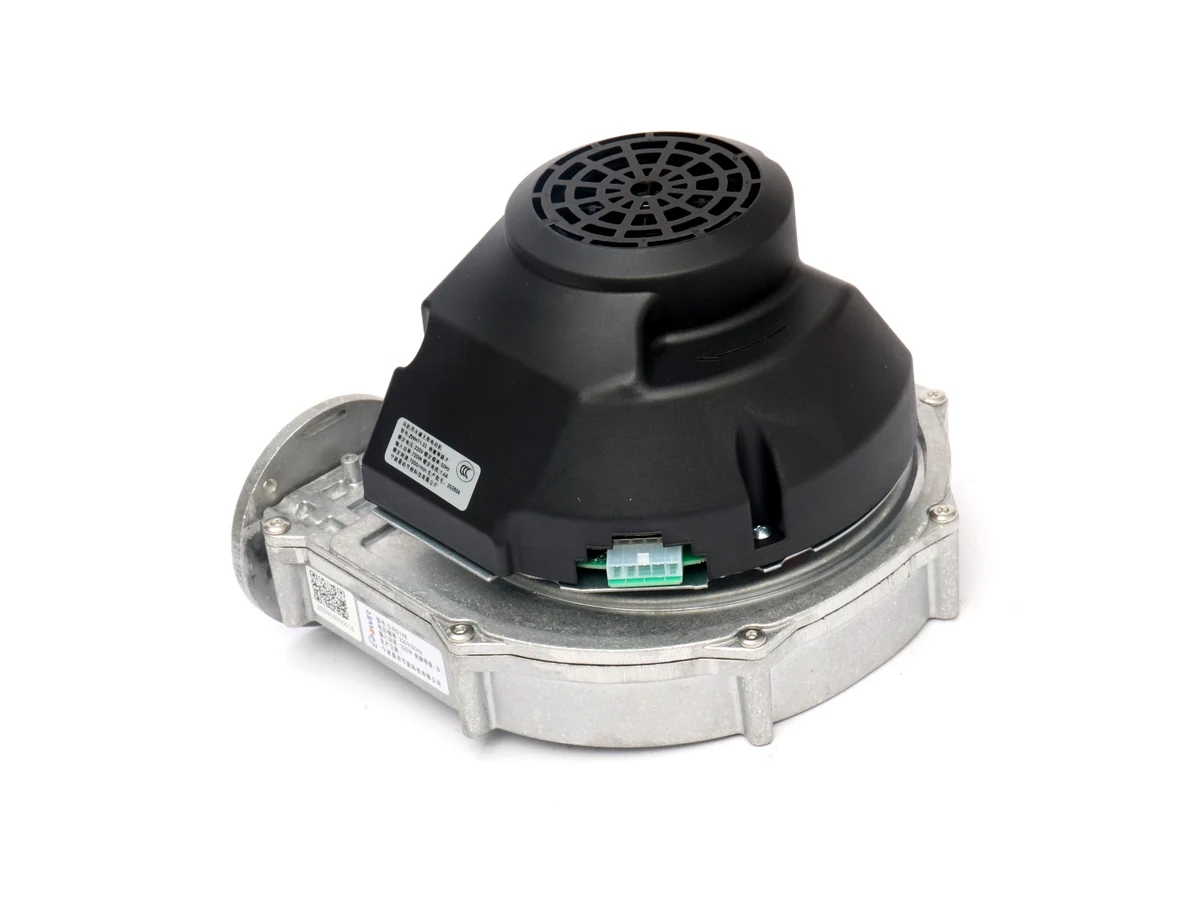

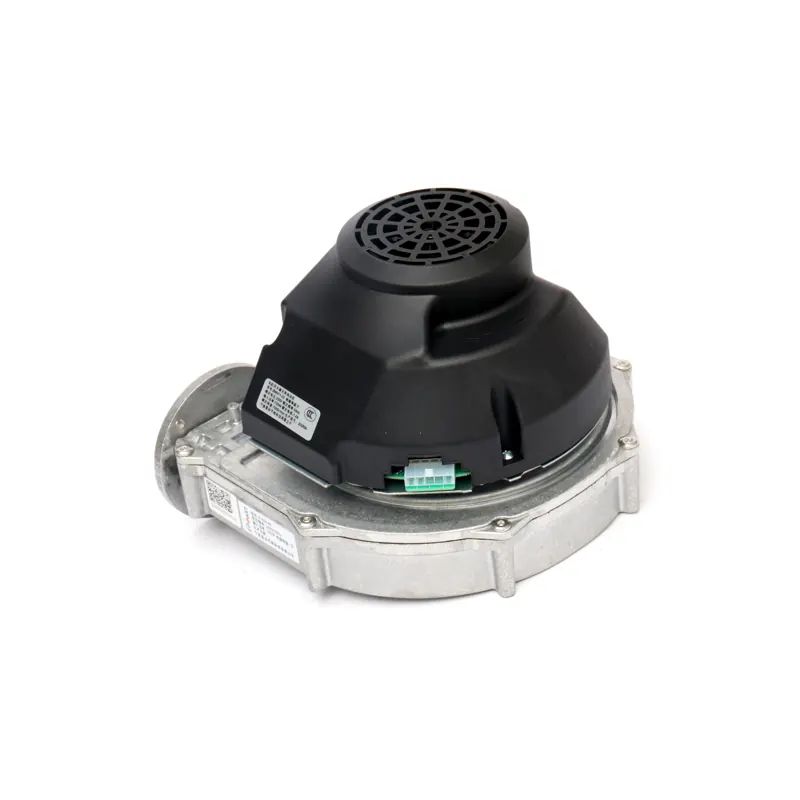

D-RG148-24V DC Centrifugal Blower
D-RG148-24V is a 24 VDC centrifugal blower for OEM assemblies that require a compact airflow source. Its plastic impeller and DC drive make it suitable for evaluation in ventilation and equipment-airflow systems. Select the operating point against the complete system resistance and verify the wiring with the approved engineering drawing.
Technical Specifications - D-RG148-24V
| Parameter | Specification |
|---|---|
| Model | D-RG148-24V |
| Rated voltage | 24 VDC |
| Rated power | 200 W |
| Rated speed | 6,100 rpm |
| Airflow | 200 m³/h |
| Rated current | 7.5 A |
| Maximum static pressure | 4,000 Pa |
| Net weight | 1.9 kg |
| Impeller material | Plastic |
| Packing quantity | 4 pcs/carton |
Application and Integration
Use the rated data as a selection starting point; actual airflow depends on system resistance and installation. For combustion or other safety-critical equipment, confirm suitability through OEM testing of the complete system.
Contact E-POWER with your target airflow, pressure, supply and mounting requirements for a model-specific quotation.
